USB3.0 to KVM fiber converter,Optical USB3.0 to KVM HDMI+USB3.0/2.0/1.1 to fiber extender,KVM+ USB3.0 fiber transceiver

Product Categories

AHD Fiber Converter [8]
EFP fiber system [34]
Alarm/Ethernet/Telephone Multiplexers [6]
USB3.0/2.0 Fiber Extender [24]
Analog video,audio,Ethernet converter [21]
Audio Fiber Converter [50]
HD-CVI Fiber Converter [7]
HD-SDI Fiber Converter [38]
HD-TVI Fiber Converter [14]
HDMI Optical extender [24]
KVM Fiber Exte der [5]
Optical transceiver module [9]
RS485 Distributor [4]

ShenZhen Beyond Optoelectronoic Technology Co.,Ltd

Contact Now

1.1 to fiber extender,KVM+ USB3.0 fiber transceiver

Ask Lasest Price
Brand Name :	BEYOND
Model Number :	BY-USB-KVM-SM003
Certification :	CE FCC
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	1000 pairs per week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

USB3.0 to KVM fiber converter,Optical USB3.0 to KVM HDMI+USB3.0/2.0/1.1 to fiber extender,KVM+ USB3.0 fiber transceiver

The device includes a transmitter and a receiver, which can extend HDMI and USB3.0/USB2.0/USB1.1 (keyboard or mouse) through a USB3.0 port to remote location over fiber, max distance 250m (SM or MM fiber cable).
The device support HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz. The product can be used for long distance expansion of the second screen, long distance KVM control

Product feature:

1, One end connected to the USB3.0 port of PC

2, The other end HDMI Output and 2 USB port(USB3.0/USB2.0/USB1.1 /keyboard or mouse)

3, Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle

4, Duplex/Single LC fiber connecter

Product specification:

Optical	Connector	Duplex/Single LC
Optical	Wave length	1310nm/1270/1330nm
Physical	Size (receiver)	90mm x33mm x17.5mm
	Size (transmitter)	157mmx81mmx29mm
	Case	Aluminum
	Color	Black
	N.W.	0.75Kg
Power	Voltage	5V DC
	sender power consumption	<5W
	receiver power consumption	<5W
Environment	Working temperature	0℃-50℃
	Storage temperature	-40-85℃
	Humidity	0-95% (non-condensing)

Panel diagram:

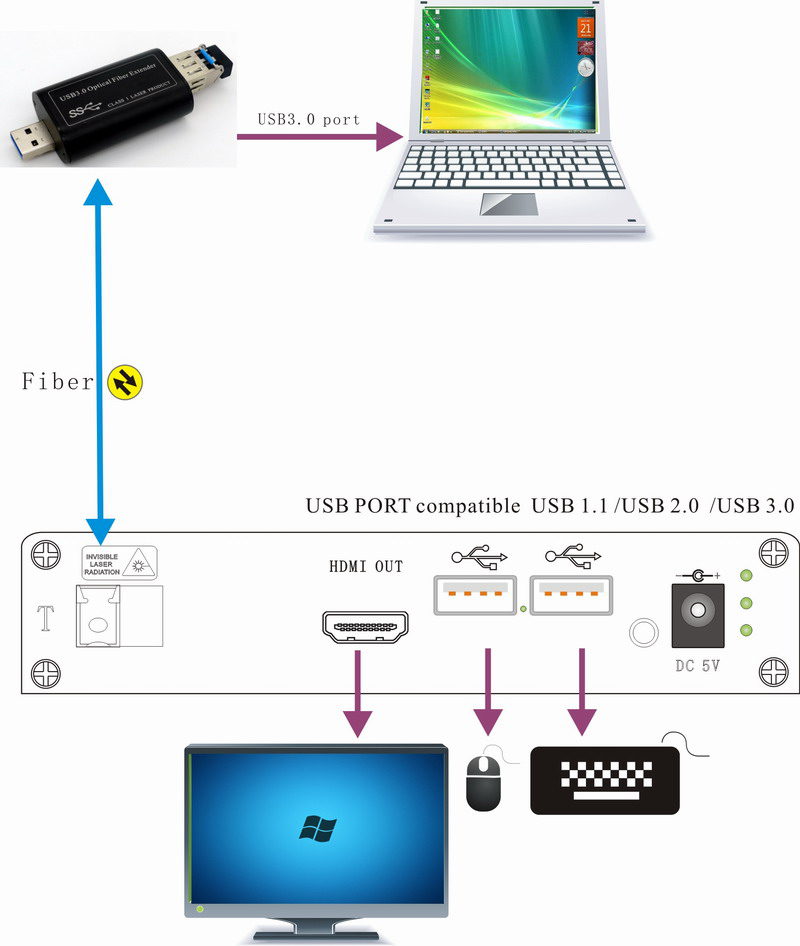

Connection diagram:

USB3.0 to KVM fiber converter,Optical USB3.0 to KVM HDMI+USB3.0/2.0/1.1 to fiber extender,KVM+ USB3.0 fiber transceiver
