USB 3.0 To Fiber Hub, the device includes a transmitter(client-side) and a receiver(host-side), which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable), also can split 1 USB3.0 interface to 4 downstream USB3.0 interface, the 4 downlink USB3.0 interface compatible with USB1.1 / USB2.0 / USB3.0.
The device can extend high bandwidth USB 3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

Application

• Industrial video transmission
• Machine vision system
• HD video surveillance system
• High - speed data acquisition system
• Remote storage
• Digital signage and TV wall
• Industrial printer system


Product feature:

• Max extension distance 250m (SM or MM fiber cable).
• Duplex/Single LC fiber connecter.
• Driver needed, compatible with all operation systems.
• Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle
• 4 downlink USB3.0 interface compatible with USB1.1 / USB2.0 / USB3.0.

Product specification:

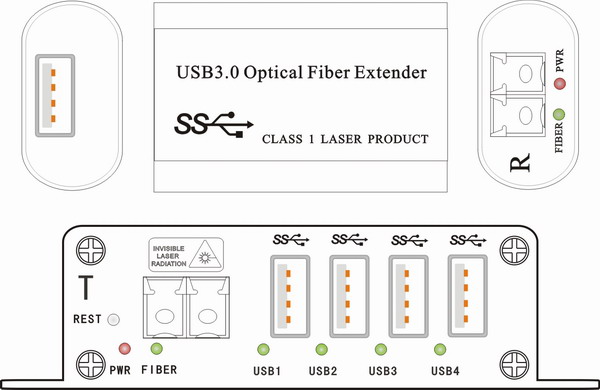

Panel diagram:

Equipment powered sequence:

(1) Install the driver, receiver(host-side)input USB3.0 port

(2) Transmitter(client-side)powered with the DC 5V adapter

(3)The USB1.1 / USB2.0 / USB3.0 device connect to the transmitter(client-side)

Note:

If the host PC does not recognize the device, you can carry out the following operations:

1 press the the REST key of transmitter(client-side)5 seconds, restart the device.

2 Connect another USB3.0 interface of host PC.

When the device is working, do not plug USB3.0 and fiber cable, so as to avoid the equipment does not work properly.

Connection diagram:
