    Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter

    Ask Lasest Price
    Brand Name : BEYONDOPTO
    Model Number : BY-HDMI-CA1SMV1
    Certification : CE.FCC,Rosh
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000 pairs per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Professional HDMI video over Coaxial converter,HDMI-OVER-Coaxial converter,Coaxial BNC to HDMI video converter

    HDMI to Coax converter, HDMI over Coax Extender,the device includes a transmitter and a receiver, which can extend HDMI signal to a remote location over single copper- core 75Ohm Coax cable.
    The device support HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 100m (1080P HDMI)/ 200m (720P HDMI).
    The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
    Product feature:
    1, Support 1920×1080@60Hz
    2, Max extension distance 100m (1080P HDMI)/ 200m(720P HDMI) over Coax cable.
    3, Pure hardware design, no driver needed, compatible with all operation systems, support plug and play
    4, Support HDMI / DVI interface
    Product specification:

    HDMIConnectorHDMI, type A, female
    HDMI versionHDMI1.1 1.2 1.3
    HDCPHDCP1.2
    HDMI resolution1080p/1080i/720p/720i/576p/576i/480p/480i
    Video color format24bit/deep color 30bit/deep color 36bit
    Audio formatDTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
    TMDS0.5-1.5Vp-p(TTL)
    DDC5Vp-p(TTL)
    Input cable length≤20m AWG26 HDMI 1.3 standard cable
    Output cable length≤20m AWG26 HDMI 1.3 standard cable
    CoaxConnectorBNC
    Impedance75Ohm
    PhysicalSize (L× W ×H)85mmx52mmx22mm
    CaseAluminum
    ColorBlack
    N.W.240g /pair (with Power supply 500g/pair)
    PowerVoltage5~12V DC
    sender power consumption2.5W
    receiver power consumption2.5W
    EnvironmentWorking temperature-20℃-70℃
    Storage temperature-40-85℃
    Humidity0-95% (non-condensing)

    Panel diagram:

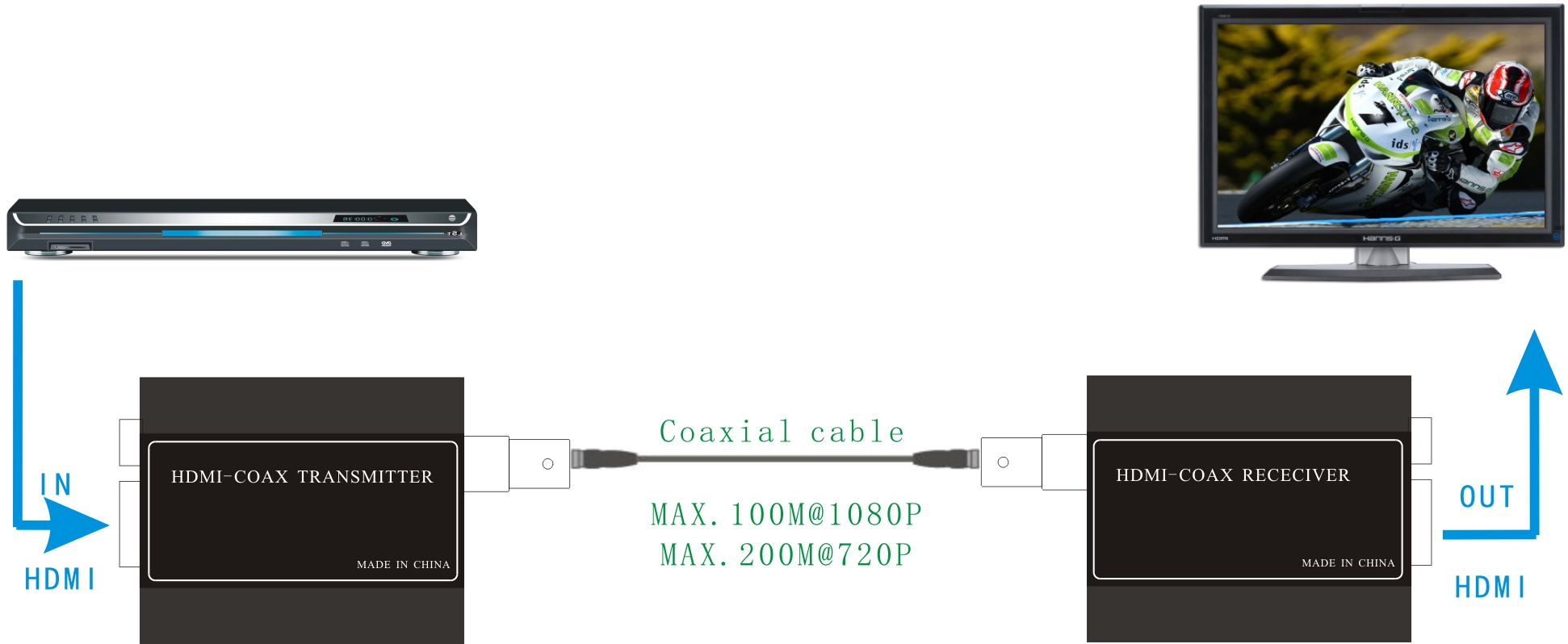

    Connection diagram:
