Beyondopto 8-ch 3-pin XLR&RCA balanced audio over fiber converter,

Ask Lasest Price
Brand Name :	Beyondopto
Model Number :	BY-XLR-8V-SM001
Certification :	CE FCC ROSH
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	1000 pairs per month
Delivery Time :	1-3 working days

Add to Cart

Product Details
Company Profile

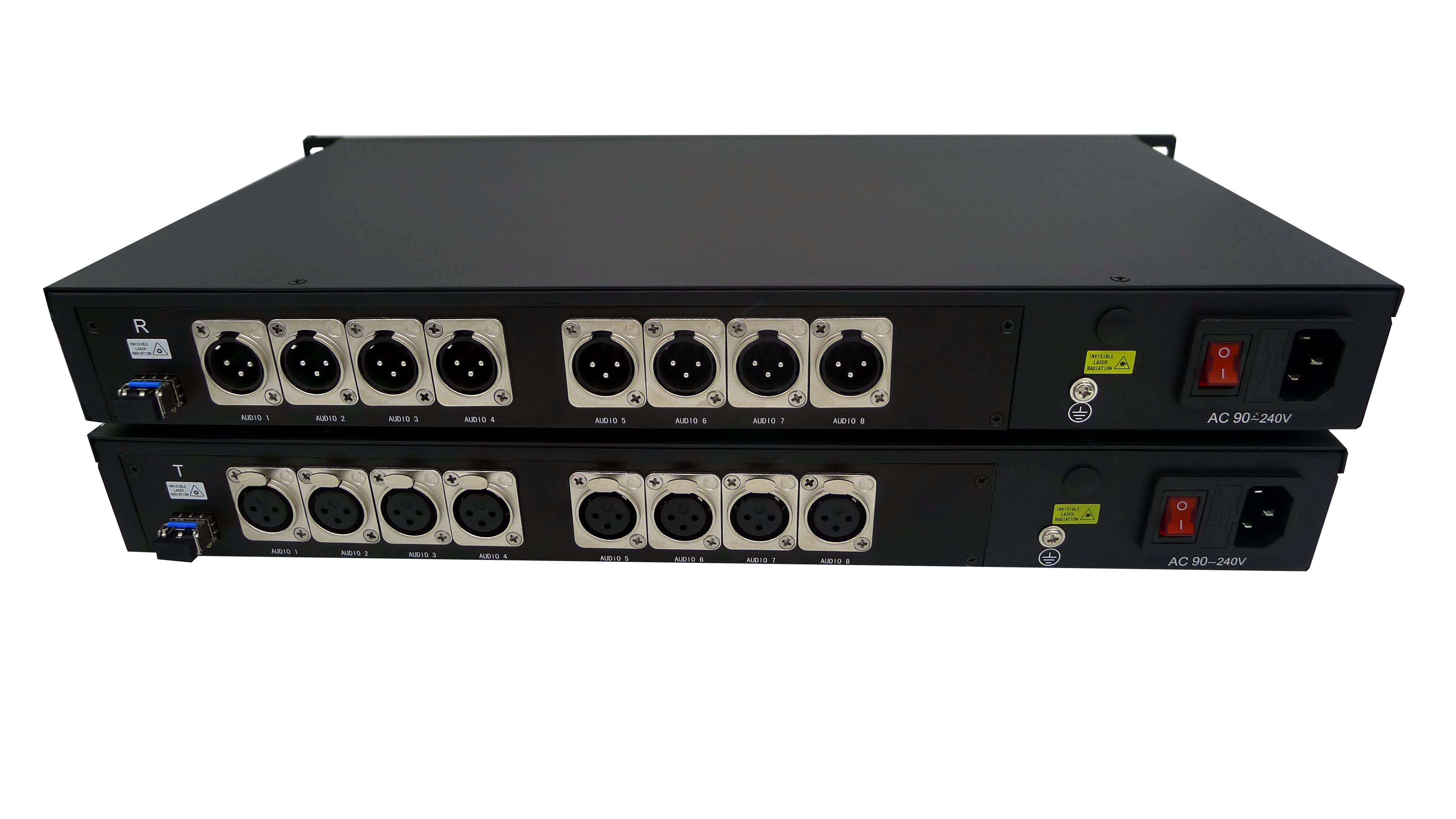

Beyondopto 8-ch 3-pin XLR&RCA balanced audio over fiber converter,

Description:

8 ch balanced audio over fiber series support 8 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Technical Parameters:

Opitcal:

Wavelength	1310nm&1470nm~1610nm
Output Power	-9~ -3dBm / -5~0dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC,ST,SC ,LC(optional)
Distance	0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

Number of Channels	8
Input Connector	XLR(female)
Output Connector	XLR(male)
Input / Output Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Max input/output voltage	3.0Vp-p
Frequency Response	10 Hz～24kHz @±3dB
Sample Rates From	48kHz
SNR	> 80dB

Electrical & Mechanical

Power Adapter:	AC 90V~240V
Power Consumption:	< 8W
Installation	19’’ 1U rack-mount chassis
Shipping Weight:	(include Transmitter & Receiver ) 7kg

Environmental

Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

Balanced Audio over Fiber connection diagram

8ch Balanced Audio over Fiber connection
