USB2.0 with remote power switch To Fiber Converter, Also called USB 2.0 with remote power switch To Fiber Extender.
The device includes a transmitter and a receiver, which can extend
USB 2.0 device , PC power switch and hard disk indicator to a
remote location over 1 fiber cable, max distance 500m (SM or MM
fiber cable) or 5KM(SM fiber cable).
The device can be widely used in military command and control
system, police command and control system, traffic management
system, energy and electricity supply industry, government office,
medical system, commercial presentation, multimedia and public
utilities etc.
Product feature:
1, Max extension distance 500m (SM or MM fiber cable) or 5KM(SM
fiber cable).
2, Single/Duplex fiber transmission, pure hardware design, no
driver needed, compatible with all operation systems, support plug
and play
3, Auto recognition of
High-speed(25Mbps～480Mbps),Full-speed(500Kbps～12Mbps),Low-speed(10Kbps～1.5Mbps)USB
device.
4, Support USB1.1 and USB 2.0 devices, cameras, printers, U disk,
scanners, audio devices, touch screens, game controllers, mouse and
keyboard, etc.
5, With remote PC power switch and hard disk indicator.
Product specification:
| Optical | Connector | SM/MM SC/FC/ST |
| Wave length | 1310nm/1550nm |
| Physical | Size (L× W ×H) | 104mm x104mm x28mm |
| Case | Aluminum |
| Color | Black |
| N.W. | 0.75Kg |
| Power | Voltage | 5V DC |
| sender power consumption | <3.5W |
| receiver power consumption | <3.5W |
| Environment | Working temperature | -20℃-70℃ |
| Storage temperature | -40-85℃ |
| Humidity | 0-95% (non-condensing) |
USB interface(Type A):
| RX | 1, connect to PC |
| TX | 2 , connect to USB device |

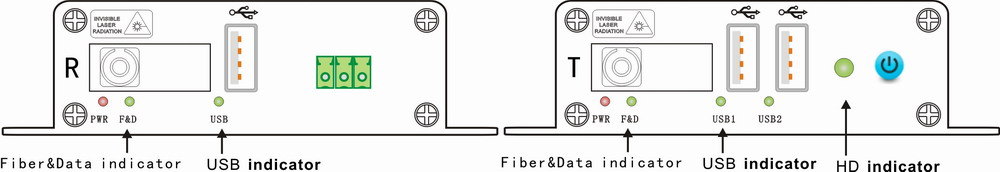

Panel diagram:
Note:When the fiber and data are connected, the F & D indicator
flash, otherwise off. After pressing the remote PC power switch,
the HD indicator lights up with the computer's hard disk status.
Then the USB indicator is on when the transmitter is plugged into
the USB device, otherwise off. If the indicator is not normal, need
to re-plug the USB device.
Connection diagram:
