EFP To Fiber with Neutrik Hybrid Connector includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the camera to the Base Station, 1 ch Reverse 3G/HD-SDI, PGM, Genlock or TC/BB, Remote control(for Sony/ Panasonic/JVC/ Datavideo), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), Remote camera power supply (15V DC up to 150 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM tactical or SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features

• 1 ch forward and 1 ch reverse SDI
• Handle all Pathological patterns
• Automatic cable equalization to ensure signal integrity
• 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
• 10+Km on single mode fiber transmission
• Mic inputs with mute and pre-amps
• Headphone with PGM / Intercom volume up or down
• Remote control (for Sony/ Panasonic/JVC/ Datavideo)
• Tally LED+/- output or dry Contact Closure optional
• V-mount or A-mount battery plate optional, Upper battery plate can be changed to heat sink
• Genlock or TC/BB are also available
• Remote camera power supply (15V DC up to 150 Watts), with insertion detection protection

Specifications:

General index

Optical:

SDI input/output:

Genlock / TC / BB

Intercom:

PGM:

Tally:

Remote:

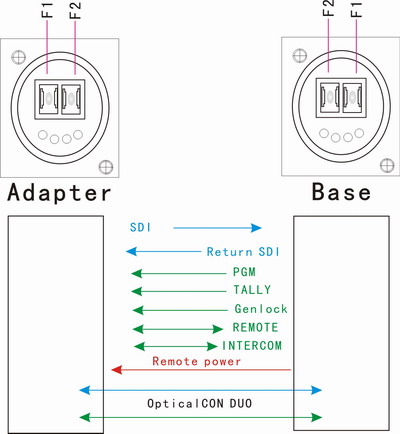

Panel diagram:
