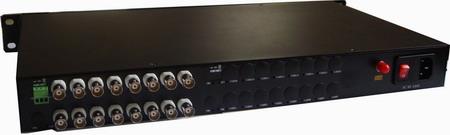

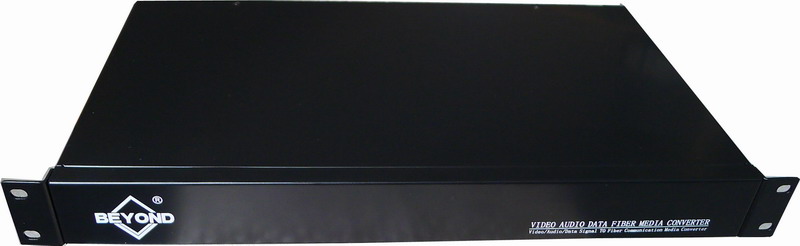

16 channels Video + reverse data to fiber converter System Description Beyondopto beyond Series video transmitters and receivers support
16 channels of 8-bit digitally encoded broadcast quality video + 1
channel reverse RS485 data over one multi-mode or single-mode
optical fiber. The devices are directly compatible with NTSC, PAL,
and SECAM camera systems. Plug and Play design ensures adjustment-free installation and
operation, and optical adjustments are never required. LED
indicators are provided to instantly monitor the system operating
status. A typical installation utilizes a transmitter unit at the
camera end of the link, connected via a single fiber optic cable,
to a receiver unit at the monitoring end of the link. Devices are
available for either stand alone or rack-mount installation with
the BATR 14-Slot Chassis.
Features
• 8-Bit Uncompressed Video Transmission
• NTSC, PAL or SECAM Video Compatible • 24-Bit Digitally Encoded Audio • Support Point-to-Point or Daisy-Chain connection • Multimode Fiber transmit up to 550m without Optical Attenuation • Single-Mode Fiber transmit up to 80km without Optical Attenuation • WDM Technology for Higher Reliability • No EMI, RFI, Cross Talk or Video Distortion and no ground loops • LED Indicators for Instant System Monitoring • Standalone or Rack Mount in FVC14 Chassis • Produce according to customer's specifications,providing OEM Typical Application
The Fiber Optical Video Converter is an all-digital fiber
transmission device,with world-class non-compression, all digital
video correction technology and Gigabit fiber transmission
technology. It supports long-distance, non-distortion and real-time
transmission of 1~64 channels of video signal (and other kinds of
signals if necessary) in one-core fiber optic.They are suitable to
the purpose of monitor and surveillance in expressways, the
customs, transportation, electronic police, industrial automation,
power service, banks, and water conservation projects, etc...
Specifications
Video | Number of Channels | 16 | Input/output impedance | BNC 75Ω (unbalance) | Video bandwidth | 5HZ—7.5MHZ | Standard video input/output voltage | 1.0Vp-p | Video voltage range | 0.6~2.0Vp-p | Differential Gain | < ±1.5% | Differential Phase | < ±1° |
Data | Data protocol | RS232、RS422、RS485、Manchester，BIPHASE data | Data rate | 0~500 Kbps | Error rate | < 10-9 | Connector | Standard terminal lead |
Electrical & Mechanical | Power Adapter: | AC 90V~240V | Power Consumption: | < 5W | Stand-Alone Dimensions: | 19 inch 1U rack-mount chassis | Shipping Weight: | (include Transmitter & Receiver ) 7kg |
Environmental | Operating Temperature: | Operating Temperature: | Storage Temperature: | Storage Temperature: | Relative Humidity: | Relative Humidity: | MTBF: | >100,000 hours |
Ordering Information & Optical Specifications
Model | Fiber Mode | Connecter | Wavelengths | Optical Power Budget | Max Transmission Distance | Transmitter | Receiver | BATH000SS1 | BARH000SS1 | SM | FC | 1310nm | 16dB | 20km | BATH000MS1 | BARH000MS1 | MM | FC | 1310nm | 16dB | 0.55km | BATH000SS3 | BARH000SS3 | SM | SC | 1310nm | 18dB | 20km | BATH000SS2 | BARH000SS2 | SM | ST | 1310nm | 16dB | 20km |
Note:
• The Optical Power Budget data fit Mulit-mode(62.5/125
μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the
optical power budget.
• Optical transmission distance is limited to optical loss of the
fiber and any additional loss introduced by connectors, splices and
patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with
fitted screw-terminal output cables.Power adapter included (for
standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement
and customization. • Due to continuous improvement, all fiber optic transmission
systems and video over fiber product specifications are subject to
change without further notice.
|
