Best Quality:RS422 Data over fiber converter

Ask Lasest Price
Brand Name :	Beyond
Certification :	CE,FCC
Model Number :	BY-data-1d-sm42201F
Price :	Negotiable
Delivery Time :	1-7 working days
Payment Terms :	T/T,Paypal,100% payment before production
Supply Ability :	10000000 pairs per month

Add to Cart

Product Details
Company Profile

Best Quality:RS422 Data over fiber converter

RS422 To Fiber Optic support RS422 data over one multi-mode or single-mode optical fiber. The serial data support RS422 data protocols. These fiber optic transmitter and fiber optic receiver are typically used in applications with PTZ Control, Access Control System, CCTV surveillance, Industirlia control, ITS etc, and are available for stand-alone or rack-mount installations FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Data
Data protocol	RS422
Data rate	0~500 Kbps
Error rate	< 10^-9
Connector	Standard terminal lead

Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 90V~240V
Power Consumption:	< 5W
Stand-Alone Dimensions:	104mm × 104mm × 28mm
Shipping Weight:	(include Transmitter & Receiver ) 0.75kg

Environmental
Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

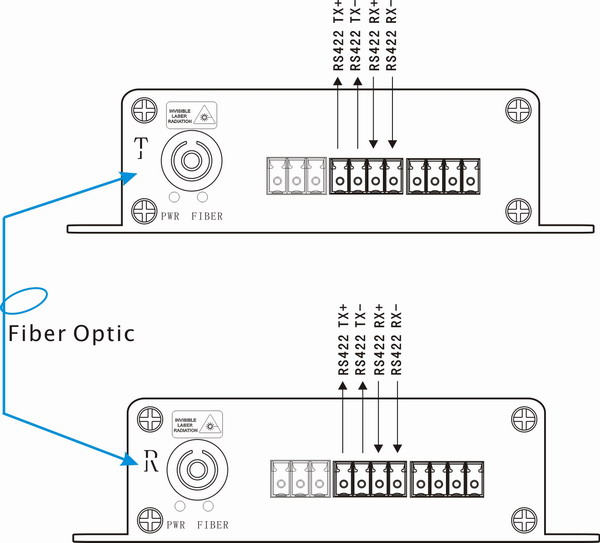

System connection diagram

RS422 To Fiber Optic connection
