HD Hybrid coaxial fiber converter,can compatible HD-CVI/AHD/HD-TVI video signal

HD Hybrid coaxial fiber converter,can compatiable HD-CVI/AHD/HD-TVI video signal over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30. Lossless non-compression real time transmission.

Features

1. High definition, Lossless non-compression real time transmission
2. Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
3. UPnP, easy installation
4. Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5. Industry-grade of operating temperature from -30℃to 75℃
6. Stand-alone type or card-type installed in 19’’ 4U rack-mount chassis.
7. Optical interface: FC,ST, SC (optional)

Specifications

Opitcal:

Wavelength	1310nm&1550nm
Output Power	-6~-2dBm
Rx sensitivity	-22dBm
Transmission Distance	9/125u single mode, 20km
Optical connector	FC,ST,SC (optional)

Video:

Number of Channels	1-16
Input/output impedance	75Ω
Physical Port	BNC port
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	60MHz
Sampling Bandwidth	10bit
Sampling Frequency	120MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°

Data:

Data protocol	RS485
Data rate	0~200 Kbps
Error rate	< 10^-9
Connector	Standard terminal lead

Other

Power	DC5V 3A
Power Consumption	≤7.5W
Temperature	-30ºC ~75ºC
Humidity	10%~90% RH
Unit Weight (pair)	1.5kg(720P), 2.2 kg(1080P)
Dimension	175mm×154mm×30mm(720P) 168mm×154mm×45mm(1080P)
Package size	30×22×9cm(720P), 30×22×18cm(1080P)
Installation	Wall mount
MTBF	≥ 100000Hours
Case material	Aluminum

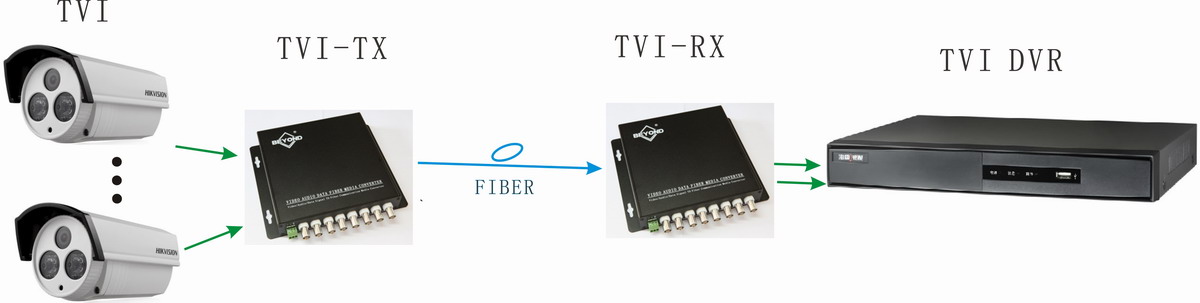

System connection diagram

TVI to fiber converter connection 1

Without data:

TVI to fiber converter connection 2

With RS485 data:

TVI to fiber converter connection 3

Standalone Dimensions:

TVI to fiber converter Dimensions

Can be customized the customer brand or without a trademark
