1 Fiber DVI optical extender is a fiber optic transport system capable of distributing high
resolution DVI signals over a single optical fiber with cable
lengths up to 300 meters(OM3 MM fiber) or 10km(SM fiber), the
resolution up to 4096×2160@30HZ. Connect the transmitter before use on the monitors will be used,
click on the transmitter key, to read and write EDID will be read
and stored in the display inside the transmitter, the EDID
programming itself so that it is able to adapt to the
characteristics of different resolution of display system, make its
use more concise, convenient and reliable. The DVI over fiber convertor support various high definition
resolution ratio transmission, the highest can be reach UXGA
1600*1200 or WUXGA 1920*1200@60Hz or HDTV 1080P 1920*1080@60Hz, 2048x1080,2K/4K, maximum resolution 4096×2160@30HZ .Max bandwidth 11Gbps. SPECIFICATION Opitcal:
Wavelength | 850nm &1310nm | Output Power | -6~-1dBm | Optic fiber | OM3 multimode ,9/125u single mode | Rx sensitivity | -16dBm | Optical connector | 1 x LC | Distance | 0~300M (OM3 MM) / 0~10KM (SM) |
Video:
DVI Input/Output | Output video | DVI 1.0 | Input video signal | 0.5～1.0V P-P | Input signal DDC | 5V P-P (TTL) | Connector | 18+1 DVI Male | General: | Input Power | 5 V DC | Power consumption (maximum) | 2.4W(max) | Operating temperature | -20°C to 70°C | Storage temperature | -40°C to 85°C | Operating humidity | 0 ~ 95% (non-condensing) | Net Weight | 190g per pair | Case material | Aluminum | Product size | 64mm×52mm×22.5mm( L/W/H) | | | |
Equipment installation and operation Step 1:Turn on the PC and the monitor power. Step 2: read the EDID monitor, read methods please follow the steps
below: (1) first connect the 5 v power adapter to the transmitter, ensure
the power light red LED lights up. (2) open the monitor power supply, then connect the transmitter DVI
interface launch to the DVI interface display device. (3) press the transmitter EDID read/write button, the EDID R/W
light lights up, says it is to read the EDID information display
device. Green indicator light goes out after 10 seconds said read
EDID information is completed, switch off the power of the

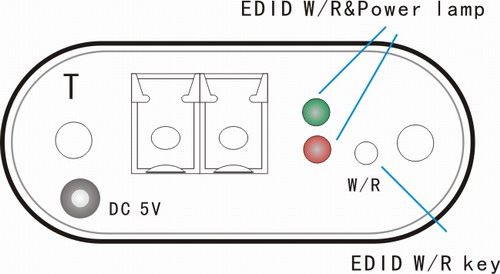

transmitter. Power and EDID W/R lamp state: power supply red light, read and
write EDID green light. Note: if a change in another display device, please do the second
step again.
Step 3: first connect the 5 v power adapter to the transmitter,
ensure the power light red LED lights up, connect the transmitter
DVI interface to the PC of the DVI interface. Step 4: connect the 5 v power adapter to the receiver, to ensure
that the power light red LED lights up. Connect the DVI port of the
receiver and display. Step 5: according to the chart will be LC fiber optic connections. Receiver Power and fiber lamp state: power supply red light,
optical fiber signal connecting green light.
|
