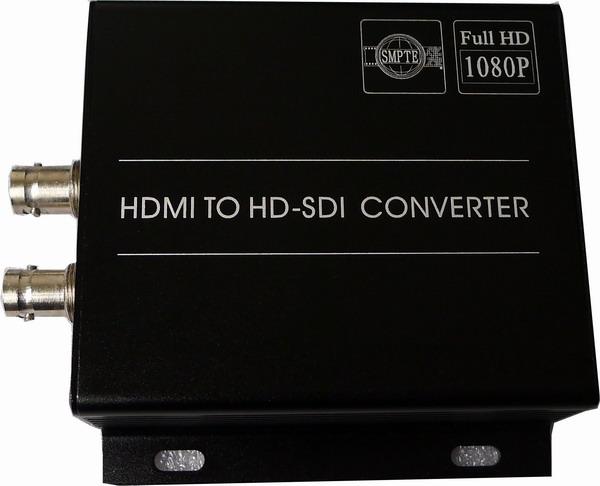

HDMI to 3G/HD/SDI Digital Video Converter Features *3G-SDI/HD-SDI/SDI signal auto recognition, need not select by
hand, HDMI or DVI-D inputput automatically also *Compliant with the standards of HDMI1.3, DVI1.0, SMPTE424M,
SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M *Auto adaption to the speed of 3G-SDI/HD-SDI/SDI 143M, 177M, 270M,
360M, 540M, 1483.5M, 1485M,2970Mbps *Resolution up to 1080p@60Hz, 12-bit color *When signal output, with driver function *When signal output, with re-clocking function *Perfect LED indicators design, very convenient to monitor device
work well or not *PCB boards made with environment friendly Pb-free *PCB boards made with multilayer design, to ensure stable and
reliable signal conversion *All components, including connectors, are ordered from
public-known manufacturers in the world, high stability and
reliability ensurance *Enclosure box material is made of aluminum, elegant appearance,
light weight *Switching power supply design, wide voltage range, reliable
long-term running *Mini box design, small and exquisite, convenient to setup and
operate Applications *HD Video at TV Stations，TV hd video display, transmission *public security traffic police and highway, the emergency commandl
center hd video display *the subway station, railway stations, an industry hd videol
multimedia information publishing system *exercises hd video signal remote transmission *security monitoring of high definition video signal remotel
transmission *big shows the high clear video signal transmission *New Media Field
Introduction The series HDMI to 3G/HD/SDI converter can convert HDMI or DVI-D HD
multimedia signal to 3G-SDI, or HD-SDI, or SDI digital video
signal. The series HDMI to 3G/HD/SDI converter has high supreme signal
precision，high supreme stability, high supreme reliability，which is
a ideal HD video converter for TV station, CMMB,IPTV, mobile TV,
mobile phone TV, telecommunication operators，government video
conference system and other new media field. Technical Specifications HDMI or DVI-D HD Digital Video Input
Signal Standard | HDMI 1.3, DVI 1.0, HDCP, CEA-861E | Channel Number | 1 | Data Rate | Maximum up to 3Gbps | Resolution | 525i, 625i,720p, 1080i, 1080p@60Hz | Connector | HDMI, type A, female |
3G/HD/SDI Digital Video Output
Channel Capacity | 2 | Signal Level | 800mVp-p±10% | 3G-SDI Rise/Fall time | <135ps@2970Mbps | HD-SDI Rise/Fall time | <270ps@1485Mbps | SDI Rise/Fall time | <0.6ns@270Mbps | 3G-SDI Jitter | <0.3UI | HD-SDI Jitter | <0.2UI(134ps)@100kHz <1.0UI(673ps)@10Hz | SDI Jitter | <0.2UI(740ps)@10Hz
<0.2UI(740ps)@1kHz | Impedance | 75Ω | Connector | BNC |
Physical
Dimension(DxWxH,mm)
Mini box | 104×94×28 | Power Supply | DC, 5V | Power Consumption | <2.5W | Temperature | 0 to +70 Degree | Humidity | 0 to 95% RH Non-condensing | LED Status Indicator | Power, Video Activity |
1, Real support 3G- SDI - 1080 p - 50/60 hz, not the splash screen
black screen; Supports embedded audio, voice without popping
(distortion of converter has the problem on the market, or do not
support embedded audio, a variety of formats of video)
compatibility is bad, we this converter HDMI interface also can be
used as a DVI interface (only need to add a HDMI to DVI cable or
connector), so this product can also be called SDI to DVI converter 2, "the SDI camera + SDI to HDMI converter + ordinary screen", this
kind of application solutions than the SDI camera + SDI screen
"plan price has great advantage, SDI screen (that is, with SDI
interface screen, LCD screen) far more costly than normal screen or
LCD TV and flat screen and television generally with HDMI or DVI
interface, so the SDI camera users with converter can use ordinary
screen or LCD TV. 3, use with SDI optical transceiver can be used as a single core
fiber HDMI or DVI optical transceiver, the " HDMI TO SDI converter
+ SDI optical transceiver, SDI to HDMI converter", the real support
1080 p - 50/60 hz, 1080 I, 720 p, video audio quality real no

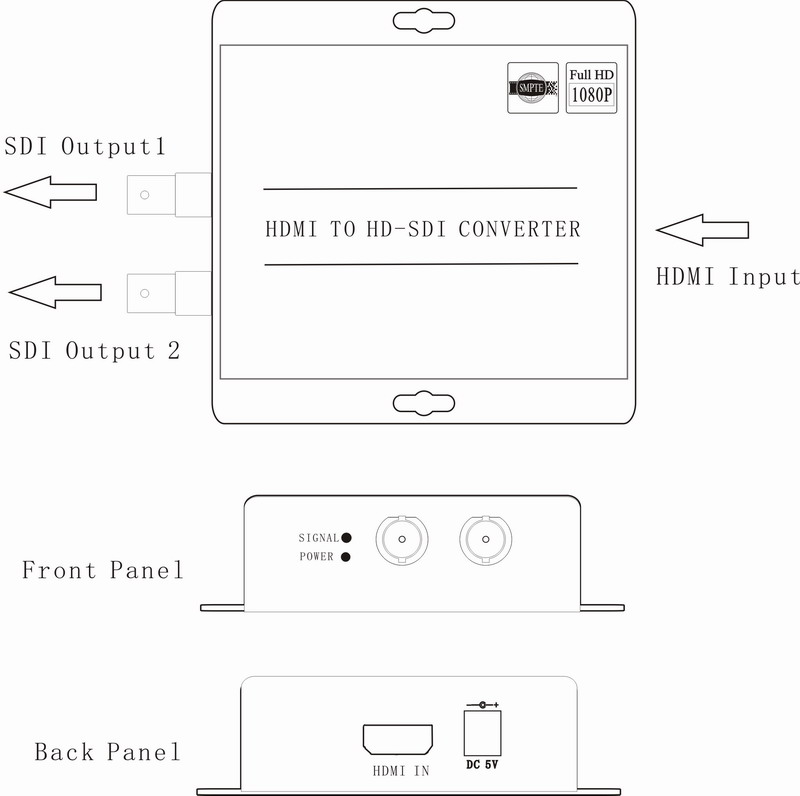

compression, no delay. Panel And Connection Graphs
|
