Banlanced/unbanlanced broadcast line-level audio to fiber converter

Ask Lasest Price
Brand Name :	beyond
Certification :	CE,FCC
Model Number :	BY-AUDIO-SM001
Price :	Negotiable
Delivery Time :	7 working days after payment
Payment Terms :	T/T,100% payment before production
Supply Ability :	10000 pairs per month

Add to Cart

Product Details
Company Profile

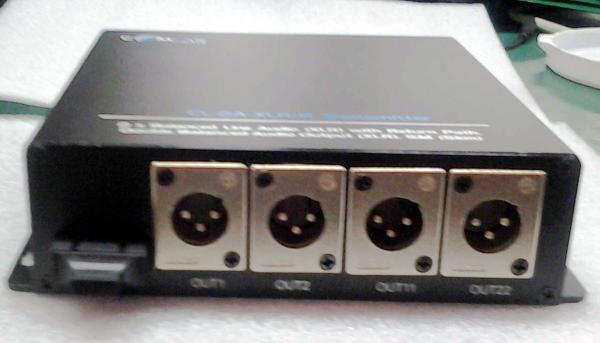

Banlanced/unbanlanced broadcast line-level audio to fiber converter

Banlanced broadcast Independent Audio over one Fiber

Banlanced/unbanlanced broadcast line-level audio to fiber converte digitally transmits four independent audio channels over one multimode or single mode fiber at 850, 1310 or 1550 nm. It is ideal for Rental, Staging, Education and Broadcast applications.

Features:
No adjustments; pure digital processing and transmission
24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response
Line level, balanced or unbalanced audio operation Indicator
LEDs monitor audio signals and power
Wide range power supply allows operation from low voltage AC and DC sources
Card version fills one slot in 6000A card cage
System consists of transmitter and receiver unit; card or box version. Each end, plus power supply, must be purchased separately
RoHS Compliant

Audio Specifications:

Number of audio Channels	4,banlanced or unbanlanced
Frequency Response	+0/-0.5 db,20HZ-20kHZ
Bits-per-Sample/Sampling Rate	24 bits; 96 kHz
Maximum Audio Level	+24 dBu
SNR (A-Weighted)	95 dB
Channel Phase Differential	+0.1o
System Latency	200 uS + fiber cable propagation delay (typically 5 uS/km of fiber)
Crosstalk	Min. 95 dB (1 kHz)
Input Impedance	600 Ohms terminated; >24 k Ohms unterminated
Output Impedance	50 Ohms
Audio Connectors	3-pin XLR connectors
LED Indicators	Power; Audio Present (per channel);
Power Requirements*	9-24 volts AC or DC, 5 watts
Operating Temperature Range	-35o to +60o C
Optical Connectors	ST/FC/SC optional

Banlanced/unbanlanced broadcast line-level audio to fiber converter
