8 channels banlanced audio XLR over fiber

Ask Lasest Price
Brand Name :	beyond
Certification :	CE,FCC
Model Number :	BY-AUDIO-BSM008
Price :	Negotiable
Delivery Time :	7 working days after payment
Payment Terms :	T/T,100% payment before production
Supply Ability :	10000 pairs per month

Add to Cart

Product Details
Company Profile

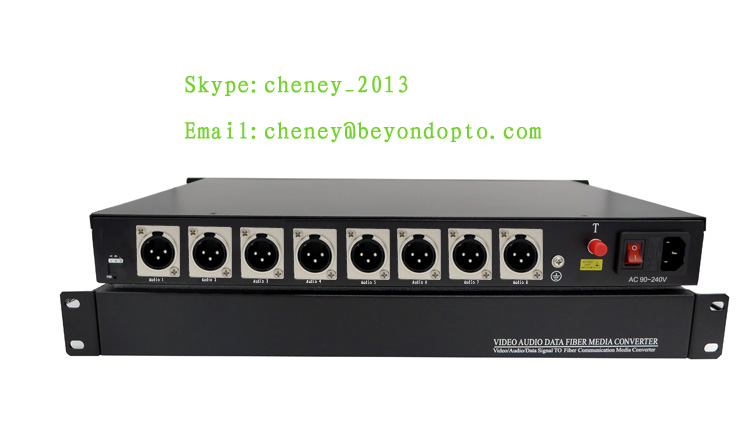

8 channels banlanced audio XLR over fiber

Overview

8 ch balance audio over fiber series support 8 Channel balance audio 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength	1310nm&1470nm~1610nm
Output Power	-9~ -3dBm / -5~0dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC,ST,SC (optional)
Distance	0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balance Audio

Number of Channels	8
Input Connector	XLR(female)
Output Connector	XLR(male)
Input Impedance	10K Ohm
Output Impedance	50 Ohm
Max input/output voltage	3.0Vp-p
Frequency Response	10 Hz～44.1kHz @±3dB
SNR	> 70dB

Electrical & Mechanical

Power Adapter:	AC 90V~240V
Power Consumption:	< 8W
Installation	19’’ 1U rack-mount chassis
Shipping Weight:	(include Transmitter & Receiver ) 7kg

Environmental

Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

Audio connection diagram

8 channels banlanced audio XLR over fiber
