Mic & line-level banlanced audio over fiber converter

Ask Lasest Price
Brand Name :	Beyond
Certification :	CE,FCC
Model Number :	BY-audio-2A-MiclSM002
Price :	Negotiable
Delivery Time :	1-7 working days
Payment Terms :	T/T,Paypal,100% payment before production
Supply Ability :	50000

Add to Cart

Product Details
Company Profile

Mic & line-level banlanced audio over fiber converter

Mic & Line Level Audio To Fiber Optic support 1 ch Mic level and 1 ch Line level 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength	1310nm&1470nm~1610nm
Output Power	-14~ -8dBm / -5~0dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-30dBm
Optical connector	FC,ST,SC (optional)
Distance	0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Mic level & Line level Balance Audio:

Input Connector	XLR(female)
Output Connector	XLR(male)
Mic level Audio
Number of Channels	Input:1
Input Impedance	2k Ohm
Dynamic Range	60dB
Line level Audio
Number of Channels	Input:1,Output:2
Input / Output Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Max input/output voltage	3.0Vp-p
Frequency Response	10 Hz～24kHz @±3dB
Sample Rates From	48kHz
SNR	> 80dB

Electrical & Mechanical:

Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 90V~240V
Power Consumption:	< 5W
Stand-Alone Dimensions:	168mm × 154mm × 45mm
Shipping Weight:	(include Transmitter & Receiver ) 2.5kg

Environmental

Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

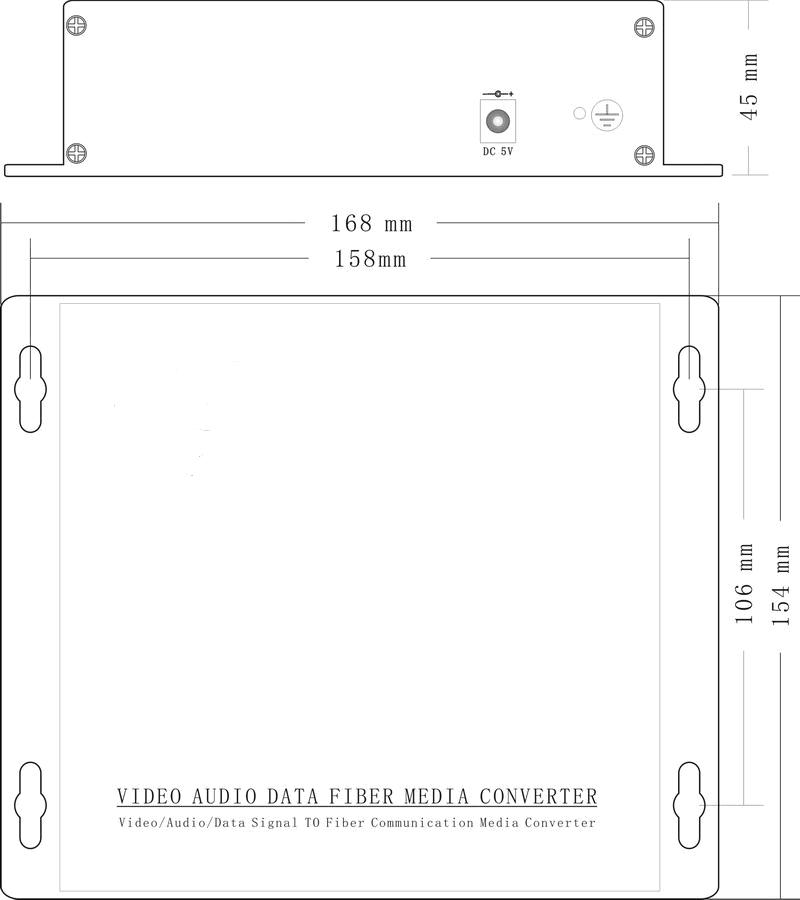

Standalone Dimensions:

Mic & Line Level Audio To Fiber Dimensions

Audio connection diagram

Mic Level & Line Level Audio To Fiber connection
