Specification:
4 CH Balance Audio(XLR)To Fiber Optic support 4 Channel balance audio 16-bit digitally encoded broadcast
quality balance audio over one multi-mode or single-mode optical
fiber. These fiber optic transmitter and fiber optic receiver are
typically used in applications for Rental, Staging, Theater,
Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and
Professional AV applications, etc, and are available for
stand-alone or rack-mount installations. FC, ST or SC optical
connectors is optional.
Plug and Play design ensures adjustment-free installation and
operation, and optical adjustments are never required. LED
indicators are provided to instantly monitor the system operating
status.
Specifications
Opitcal:
Wavelength | 1310nm&1470nm~1610nm |
Output Power | -14~ -8dBm / -5~0dBm |
Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity | -30dBm |
Optical connector | FC,ST,SC (optional) |
Distance | 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balance Audio
Number of Channels | 4 |
Input Connector | XLR(female) |
Output Connector | XLR(male) |
Input Impedance | 10K Ohm |
Output Impedance | 50 Ohm |
Max input/output voltage | 3.0Vp-p |
Frequency Response | 10 Hz～44.1kHz @±3dB |
SNR | > 70dB |
Electrical & Mechanical
Input Power Requirements: | DC 5V@2A |
Power Adapter: | AC 90V~240V |
Power Consumption: | < 5W |
Stand-Alone Dimensions: | 168mm × 154mm × 45mm |
Shipping Weight: | (include Transmitter & Receiver ) 2.5kg |
Environmental
Operating Temperature: | -20°C ~ +75°C |
Storage Temperature: | -40°C ~ +85°C |
Relative Humidity: | 0% ~ 95% (non-condensing) |
MTBF: | >100,000 hours |
Standalone Dimensions:
Connection diagram:

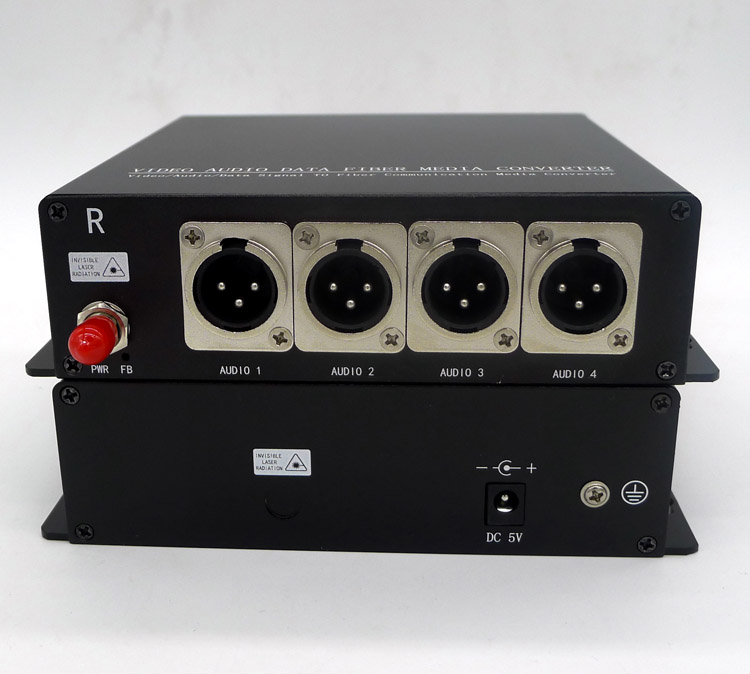

High resolution pictures:
