4 Fort USB 2.0 Fiber Optic Extender, Also called 4 Fort USB2.0 To Fiber Converter. The device includes
a transmitter and a receiver, which can extend USB 2.0 device to a
remote location over 1 fiber cable, max distance 250m (SM or MM
fiber cable). An integrated four port hub allows for extension of
up to four USB devices without the need for an additional hub.
The device can be widely used in military command and control
system, police command and control system, traffic management
system, energy and electricity supply industry, government office,
medical system, commercial presentation, multimedia and public
utilities etc.
Product feature:
1, Max extension distance 250m (SM or MM fiber cable).
2, Single/Duplex fiber transmission, pure hardware design, no
driver needed, compatible with all operation systems, support plug
and play
3, Auto recognition of
High-speed(25Mbps～480Mbps),Full-speed(500Kbps～12Mbps),Low-speed(10Kbps～1.5Mbps)USB
device.
4, Support USB1.1 and USB 2.0 devices, cameras, printers, U disk,
scanners, audio devices, touch screens, game controllers, mouse and
keyboard, etc.
Product specification:
Optical | Connector | SM/MM SC/FC/ST | Wave length | 1310nm/1550nm | Physical | Size (L× W ×H) | 104mm x104mm x28mm | Case | Aluminum | Color | Black | N.W. | 0.75Kg | Power | Voltage | 5V DC | sender power consumption | <5W | receiver power consumption | <5W | Environment | Working temperature | -20℃-70℃ | Storage temperature | -40-85℃ | Humidity | 0-95% (non-condensing) |
USB
interface(Type A):
RX | 1, connect to PC | TX | 4 , connect to USB devices, max 500mA |

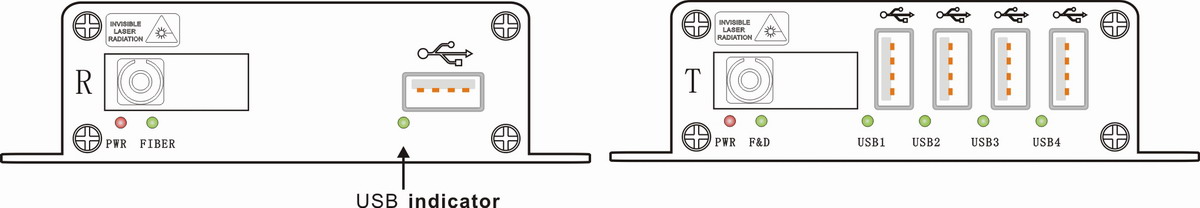

Panel diagram:
Note: The USB indicator green light flash when the device is

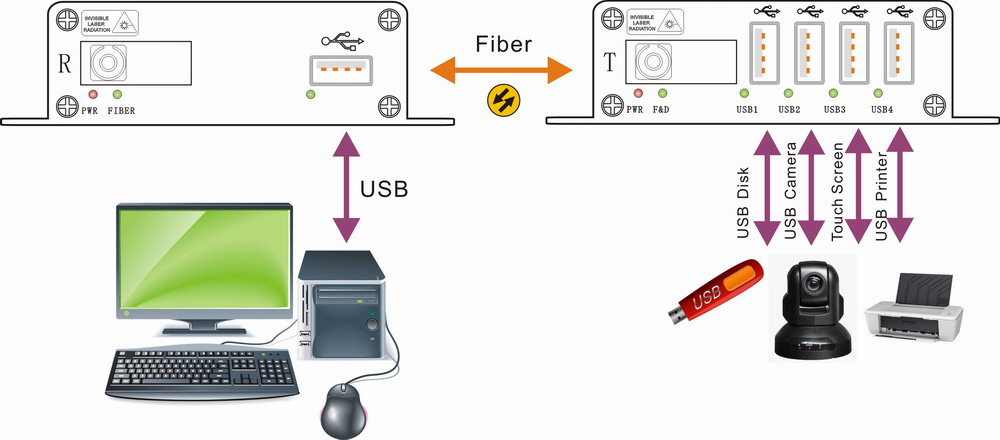

connected well, otherwise you need to re plug USB devices. Connection diagram:
|
