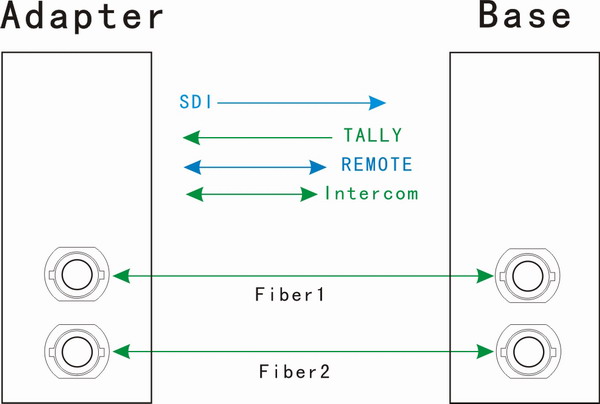

EFP Fiber Optic for Panasonic or Sony camera includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station, Reverse video(SDI or CVBS),Sony or Panasonic Remote control data(Connect Sony RCU/RCP RM-B150,RM-B170 or RM-B750, or Panasonic RCU AJ-RC10G,ECU AG-EC4G), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station),, tally(1 or 2 colors). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features

1. Handle all Pathological patterns
2. Automatic cable equalization to ensure signal integrity
3. 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
4. 10+Km on single mode fiber or 300m on multimode fiber transmission
5. Mic inputs with mute and pre-amps
6. RS422 remote control
7. Tally/GPI LED+/- output or dry Contact Closure optional
8. V-mount or A-mount battery plate optional

Specifications:

General index

Optical:

SDI input/output:

Intercom:

Tally:

Remote:

Panel diagram:

Camera Optic Adaptor

Optic Base Station
